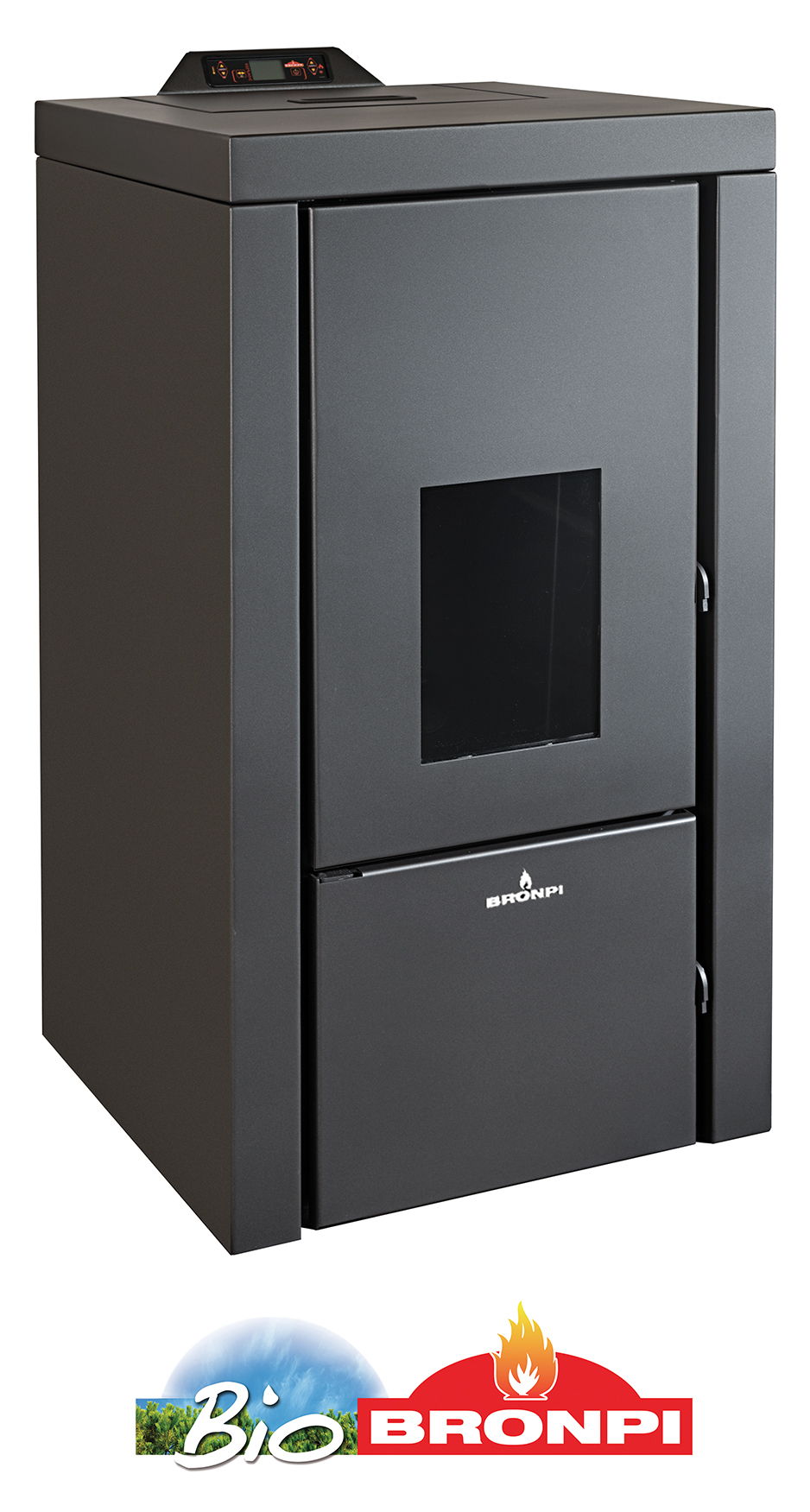

Carlota NE

Features

• Power min-max: 21.2-7.2kw
• Power bone min-max: 23.3kw
• Power transferred to the water: 20.3-6.9kw
• Power transferred to the water with olive stone: 20,3kw
• Efficiency: 91-96 %
• Efficiency with olive stone: 92%
• Consumption min-max.: 1.5-4.9 kg/h
• Consumption with olive stone min-max. (kg/h): 5.6kg/h
• Power consumption: 150-500W
• Heating capacity (m³): 507 m³
• Heating capacity with olive stone (m³): 507m³
• Tank capacity: 74 l
• Metallic interior
• Autonomy (min-max): 32-9.8h
• Autonomy with olive stone (min-max): 9.6h
• Weight: 198kg
• Fume outlet diameter: 80mm
• Air inlet diameter : 60mm
• Multifuel
• Working pressure: 1,5bar
• Working maximum pressure: 1,5bar
• Closed expansion vessel: 8 l
• Maximum service temperature: 40/80°C
• Valve for drinning water
• Circulating pump
• Weekly programmer
• Automatic ignition
• Hermetic tank
• Management Heating / Sanitary Water
• Security system: S2. Safety thermostat pellet, Safety thermostat water, Air flow switch, Safety valve 3 bar, Pressure setting valve
• Compatible accesories not included: KIT GPRS/VAL-02/VAL-04/T-AMB/CRONO-01/PE-130
• Multifuel boiler certified for burning pellet and olive stones
• Stainless steel support and scrapers
• New version of the base-cleaning system
• Cast-iron burner
• Thermally insulated chamber
• Combustion chamber window
• Automatic air vent included
• LCD Display with light for easy operation in dark room
• Height adjustable levelling feet
• Easy access for cleaning and maintenance tasks
