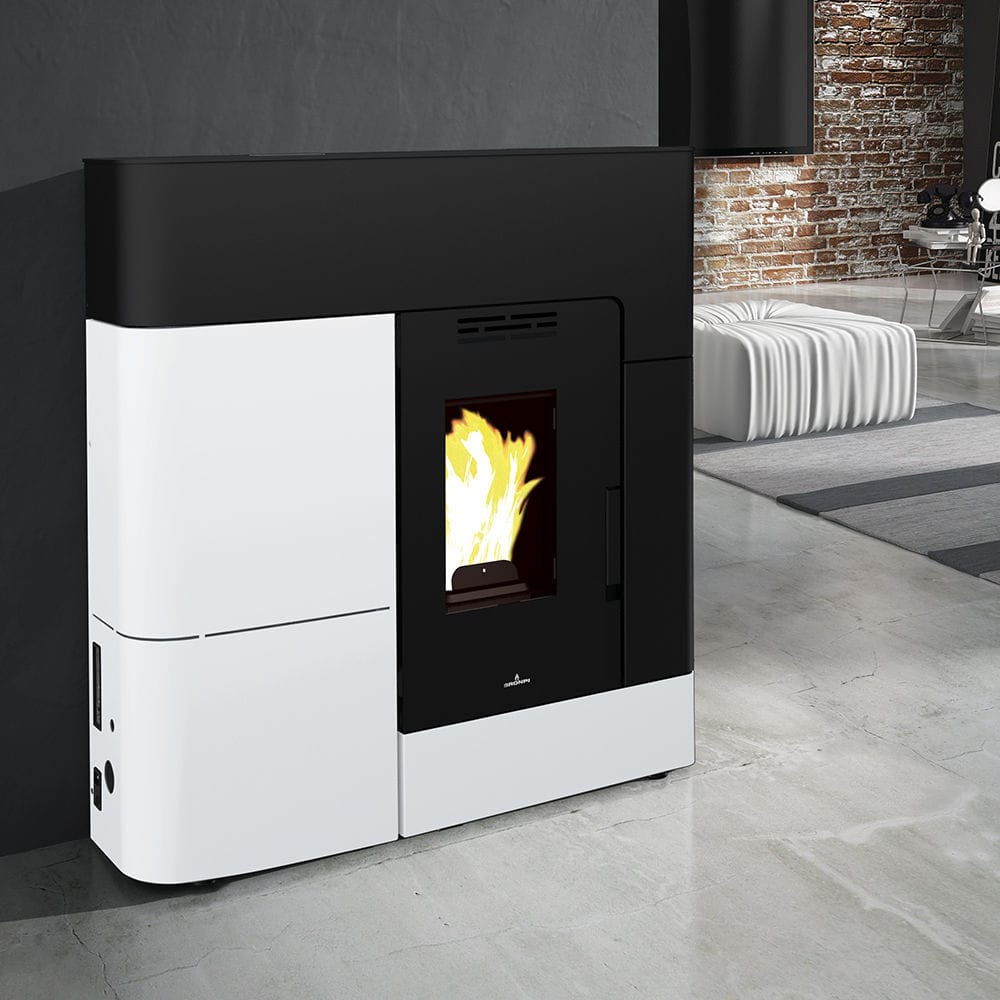

CLARA HYDRO
Power max (kW)18.4
Power min-max (kW)16.9-5.08
Power transferred to the air (kW) max-min2.7-0.3
Power transferred to the water (kW)14.2-4.8
Efficiency (%)92-96.3
Consumption min-max. (kg/h)1.06-3.7
CElectric power (W)150 – 500
Heating capacity (m3)422
Hopper capacity (Kg)25
Metalic inside
Autonomous (h) (min-max)23.5-6.7
Weight (kg)169
Smoke exit tube diameter (mm)80
Air inlet tube diameter (mm)50
Clean glass system
Working pressure (bar)1.5
Working maximum pressure (bar)2.5
Remote control or switchboard
Closed expansion vessel (l)8
Maximum service temperature (ºC)80
Valve for drinning water
Water pump
Weekly programmer
Automatic ignition
Underfloor heating (m2)140
Nº radiator elements101
Smoke outlet at the top, back or rise
S2:Security systems: Safety thermostat pellet, Safety thermostat water, Air flow switch, Pressure switch or pressure tansducer, Safety valve 3 bar
Compatible accesories not includedKIT GPRS/VAL-02/VAL-04/T-AMB/CRONO-01

Features

  • Power max: 18.4kw
  • Power min-max: 16.9-5.08kw
  • Power transferred to the air max-min: 2.7-0.3kw
  • Power transferred to the water max-min: 14.2-4.8kw
  • Efficiency : 92-96.3%
  • Consumption min-max. : 1.06-3.7kg/h
  • Electric power : 150 – 500W
  • Heating capacity: 422m3
  • Tank capacity: 25 kg
  • Metallic interior
  • Autonomy (min-max): 23.5-6.7h
  • Weight: 169kg
  • Smoke exit tube diameter: 80mm
  • Air inlet tube diameter: 50mm
  • Clean glass system
  • Working pressure: 1.5bar
  • Working maximum pressure: 2.5bar
  • Remote control or switchboard
  • Closed expansion vessel: 8 l
  • Maximum service temperature:80°C
  • Valve for drinning water
  • Circulating pump
  • Weekly programmer
  • Automatic ignition
  • Underfloor heating: 140(m2)
  • Nº radiator elements: 101
  • Security system: S2. Safety thermostat pellet, Safety thermostat water, Air flow switch, Safety valve 3 bar, Pressure setting valve
  • Compatible accesories not included: KIT GPRS/VAL-02/VAL-04/T-AMB/CRONO-01
