insert line 600

mon amour

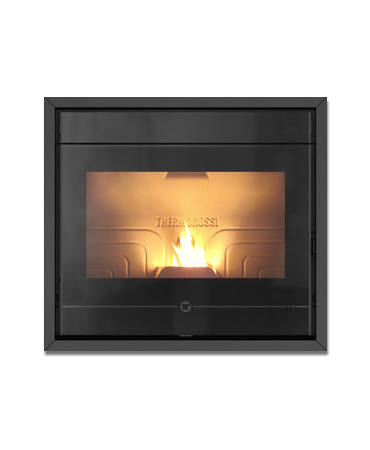

Insert line 600 is an elegant, modern, with air ducting fireplace. The innovative design of the vertical tube heat exchanger THERMOCORE® allows the appliance to achieve both a very high performance and maximum energy saving. The front door and the pellet burning pot, constructed in heavy cast iron, add an extra degree of reliability and longevity. Equipped with simplified cleaning system EASY CLEANING and with removable ash pan as standard. Easy and quick to install thanks to the support kit.
Heatable area
96 m².
  • Black
Thermorossi_colors_insert_line_600
  • thermorossi_insert_600_numbers

1 – Option: Fast rigid mobile kit. Extracting system for inserts, for pellet refueling (even during the working phase)
2 – Removable door handle. Essential design and added safety
3 – Cast iron and glass inlayed firebox door
4 – Reinforced rails included for extraction
5 – Optional: Support kit (chute for fixed installation included)

Every uniti s tested for one hour in the factory Remote control Our products don’t incur additional cost for adjustments or testing Simplified cleaning system Heat exchanger Thermocore® External rotor room fan is guaranteed for 4 years Low energy consumption Higher heat accumulation only 36 decibels of noise Thermosilent system Air ducting product External primary air input Made in Italy

DETAILS

  • Thermorossi_display_insert2

    THERMOROSSI_DISPLAY_INSERT2

    ZOOM

OPTIONAL ACCESSORIES

  • Thermorossi_optional_insert_base

    THERMOROSSI_OPTIONAL_INSERT_BASE

    ZOOM
  • Thermocomfort

    THERMOCOMFORT

    ZOOM
DIMENSIONS
TECHNICAL DATA
DIMENSIONS (HXWXD)    641X715X655
WEIGHT (KG)    131
HEATABLE AREA (M²)*A*C    96
EFFICIENCY UP TO MAX (%)*A    92,0%
ENERGY CLASS    A+
POWER TO THE HEART (KW)*A    4,8 – 12
RATED POWER (KW)*A    4,4 – 10,7
POWER TO THE WATER (KW)*A     –
RADIATION (KW)*A     –
HOURLY PELLET CONSUMPTION (KG/H)*A    0,8 – 2,4
WOOD HOURLY CONSUMPTION (KG/H)*A     –
PELLET HOPPER CAPACITY (KG)*A    20,0
WARM AIR DUCTING    SI
MAXIMUM SINGLE DUCTING OUTLET (M)    16
PATENTED BURNER PELLETPOWER®    –
ROOM VENTILATION    SI
PRIMARY AIR FROM OUTSIDE    SI
CO EMISSIONS (MG/M³; 13% OF O2)*A    133
CO EMISSIONS (MG/M³; 10% OF O2)*A    –
DUST EMISSIONS (MG/M³; 13% OF O2)*A    15
DUST EMISSIONS (MG/M³; 10% OF O2)*A    –
SILENCE (DB)    36
REMOTE CONTROL    SI
RADIO CONTROL WITH ROOM TEMPERATURE THERMOSTAT    OPT
WEEKLY PROGRAMMER (3 DAILY LIGHTING)    SI
«SMART INFO» FUNCTION    SI
SYSTEM CIRCULATING PUMP    –
EXPANSION TANK    –
OVER PRESSURE VALVE    SI
FLUE GASEXHAUST DIAMETER (MM)    80
MIN. FLUE DRAUGHT PRESSURE (PA)    10
ELECTRIC CONSUMPTION (WATT)    70-270
HIGH TEMPERATURE SAFETY THERMOSTAT    SI
*A EMISSIONS AND PERFORMANCE DATA MAY CHANGE ACCORDING TO THE FUEL USED. THE VALUES OF PELLET PRODUCTS HAVE BEEN OBTAINED BY USING CERTIFIED FUEL ACCORDING TO EN 14961-2 A1-A2 NORM. WOOD LOGS PRODUCTS VALUES MAY VARY ACCORDING TO THE TYPE AND QUALITY OF THE WOOD LOGS USED.
*B PROVISIONAL DATA UNDER CERTIFICATION
*C IMPORTANT: WHEN CALCULATING THE VOLUME OF THE “HEATED AREA” SOME RELEVANT ASPECTS MUST BE CONSIDERED: INSULATION OF THE BUILDING (ENERGY CLASS), POSITION OF THE HEATER, CLIMATIC AREA AND MORE ASPECTS THAT CAN AFFECT THE VALUES OF PERFORMANCE. REPORTED DATA HAVE BEEN CALCULATED ON THE BASE OF ROOF NOT HIGHER THAN 3 MTS.
THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES WITHOUT PREVIOUS NOTICE.
